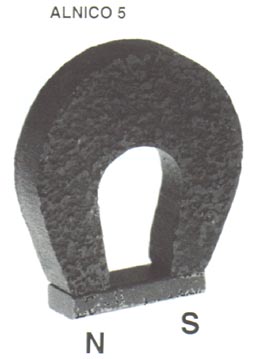

ALNICO HORSESHOES MAGNETS

alnico magnets

Part No.

WGT Ibs

Pounds pull

Dimensions in inches
A B C D E F
HS170   · 0.063 3 0.750 1.125 0.250 0.312 0.219 1.125
HS3702 · 0.200 13 1.125 0.750 0.750 0.750 0.250 1.125
HSPH2 0.067 1 1.188 1.950 0.250 0.400 0.400 1.188
HS244 0.138 15 1.250 1.250 0.437 0.375 0.437 1.500
HS90 0.2840 19 1.625 0.844 1.125 0.812 0.406 1.625
HS537   · 0.283 22 1.625 1.562 0.625 0.375 0.625 1.812
HS171 0.292 22 2.000 1.375 0.609 0.750 0.625 2.000
HS286 0.922 60 2.500 2.500 0.750 1.000 0.750 3.000
HSPH1 * 0.950 3 3.000 3.750 0.750 2.100 0.500 3.000

KEY: · = Magnet is painted red and is keeper.

 * = Magnet is painted black with North pole marked and has a keeper. Made of 3 - ½% chrome

All dimensions approximate and as cast with pole faces ground smooth. Other sizes may be available on request.

Note: The grades listed are typical for the industry. If you need special characteristics then we have other grades available.
